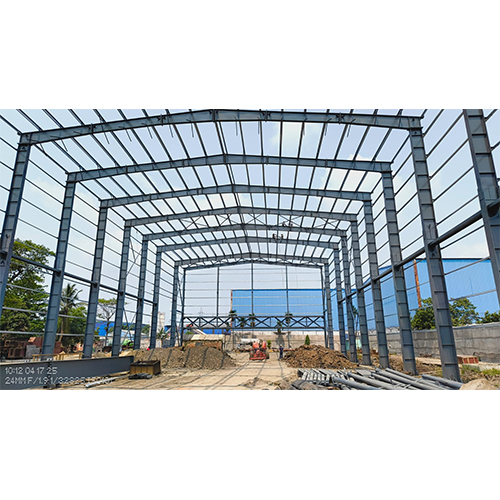

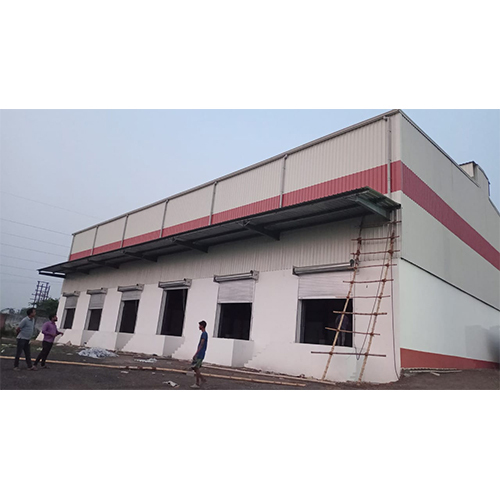

Prefabricated Engineered Building

Prefabricated Engineered Building Price And Quantity

• Minimum Order Quantity 100 Square Feet
• Price 275 INR/Square Feet

Prefabricated Engineered Building Product Specifications

• Life Span 30-50 Years
• Window Material PVC / Aluminium Alloy
• Dimension (L*W*H) As per Requirement / Custom Size
• Roof Dead Load 0.5-0.6 kN/m2
• Material Pre-engineered Steel / Structural Steel
• Color Blue, White, Grey (customizable)
• Window Style Sliding, Fixed
• Window As per Design
• Use Warehouse, Factory, Workshop, Storage, Commercial Building
• Open Style Sliding, Hinged
• Earthquake Intensity 9 Grade
• Roof Material Color Coated Metal Sheet / Galvanized Steel Sheets
• Floor Load 2.5-5 kN/m2 (customizable)
• Floor Material Concrete/Steel Deck
• Thickness Of Wall Panel 50mm / 75mm / 100mm
• Door Single / Double / Roller Shutter
• Door Material Steel / Aluminium
• Wall Materials PU/EPS/Rock Wool Sandwich Panel or Steel Sheet
• Roof Live Load 0.5 kN/m2
• Insulation Optional: EPS / PU / Rock Wool
• Connection Bolted / Welded Connection

• Wind Resistance 120-180 km/h
• Main Frame H-beam, Welded or Hot Rolled
• Secondary Structure C/Z Shaped Purlins, Bracing, Tie Bar
• Transport Knock-down design for economical transportation
• Design Standard International Codes: AISC, GB, Eurocode
• Environmental Performance 100% Recyclable, Eco-Friendly
• Assembly Quick On-site Installation
• Surface Treatment Painted or Hot Dip Galvanized
• Fire Resistance Good, up to 1-2 Hours
• Gutter & Downspouts Galvanized Sheet / PVC

Prefabricated Engineered Building Trade Information

• Supply Ability 1000 Square Feet Per Week
• Delivery Time 7 Days
